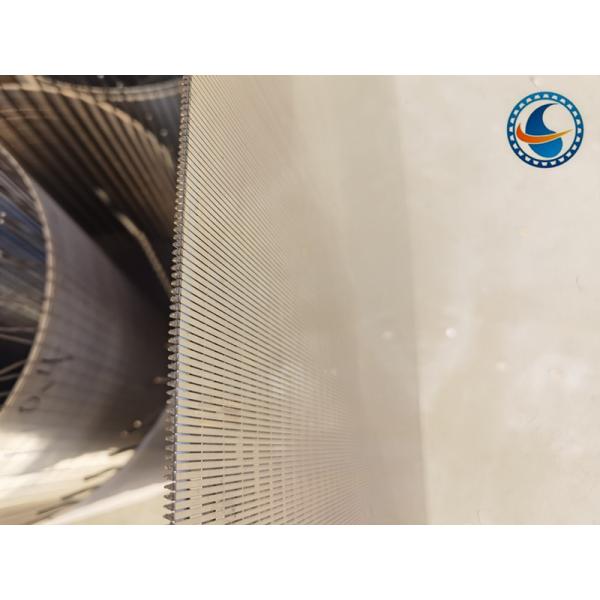

Stainless Steel Slotted Vee Wedge Wire Mesh Screen Flat Panels
What is Wire Screen Flat Panel?
Slotted Vee Wedge Wire Mesh Screen Flat Panels are produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.
Slotted Vee Wedge Wire Mesh Screen Flat Panels are characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads. The working surface is 100% smooth which eliminates blinding and pegging.
The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.Wedge wire screens are either flow-out-to-in OR flow-in-to-out.
Slotted Vee Wedge Wire Screen Flat Panels are widely serviced for many industries for filtration and separation stage.
petroleum
chemical
pharmaceutical
water treatment
environmental protection
paint & inks
pulp & paper
food & light industries
Slotted Vee Wedge Wire Screen Flat Panels Advantage:
1. Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
2. Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
3. Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
4.High-precision slot opening: Minimum Slot opening is 20 microns.
Slotted Vee Wedge Wire Screen Flat Panels Specification:
| Outside Diameter (mm) | Length (mm) | Slot (mm) | Styles of connection |
| 29,38,42,57,63,76,89,108,150, 320,500,600,900,985,1000 | 1000,2000, 3000,4000 etc | 0.05,0.1,0.25, 0.5,1.0 etc | Welded rings, male/female threaded coupling, flange,closed up etc. |
| Explanation | Besides above of the specification screen pipe, we also can act according to the customer’s request the manufacture diameter from ￠ 25mm- ￠ 1300mm, the length from the 100mm-6000mm series screen pipe |
