Stainless Steel 316L Full Welded Wedge Wire Wound Screen Tube
Full Welded Wedge Wire Wound Screen Tube Materials:
304, 316L Hastelloy alloy, with strong structure, tensile and compressive properties, high strength and corrosion resistance, and can work under high temperature.
Full Welded Wedge Wire Wound Screen Tube Structure:
Cylindrical screen is made up of rod and V wire wrapped around on advanced inverter welding equipment made in welding, solder joint strength is high, uniform crack, corrosion resistance is strong, effective filter has big filter area, good seepage, simple structure, cracks in 0.05 millimeter above, can be arbitrarily selected by the user, according to user needs, can supply alone.
Full Welded Wedge Wire Wound Screen Tube Features:
Full welding type filter tube, filter board is to use the triangle (V) stainless steel wire (cross or carbon steel wire welded together, welding high strength, good filtering effect, not easy jam is chemical, mining, petroleum, paper making, water Wells, water treatment equipment, sugar, wine and other industries filtration equipment.
Full Welded Wedge Wire Wound Screen Tube Specification:
| Name | Full Welded Wedge Wire Wound Screen Tube |
| Material | Stainless steel 304, 304L, 316L and 321 etc. |
| Profile Wire | 1.0 *2.0 mm 1.5*2mm 1.5*2.5mm 2*3mm 2.3*3.5mm 2.2*4mm 2.2*4.5mm,3*4.6mm,3*5mm etc |
| Support Rods | 2*3mm 3*4mm 3*4.6mm 3*5mm 3*6mm 4*7mm |
| Round | From 2.5mm to 6.0mm |
| Slot Size | 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc |
| Pipe Length | Max 6 meter |
| Pipe diameter | 25mm to 1300mm |
| Screen Ends | Plain Beveled ends, male/female threaded, flange or close up. |

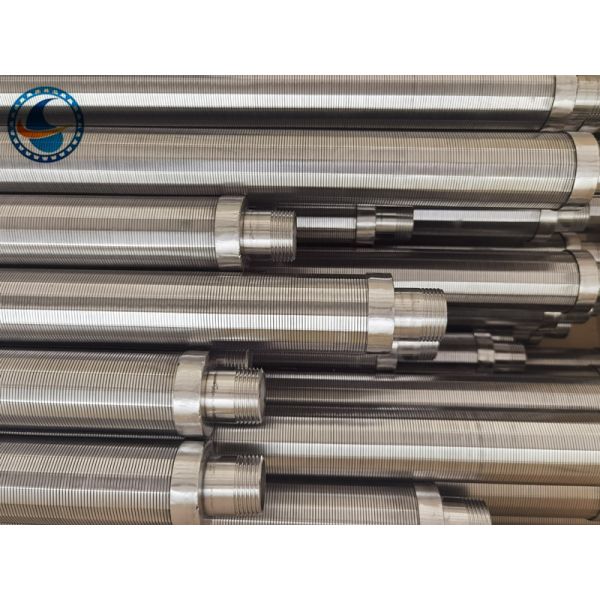

Full Welded Wedge Wire Wound Screen Tube Pictures:
